| สถานที่กำเนิด: | สหรัฐอเมริกา |
| ชื่อแบรนด์: | Bently Nevada |
| ได้รับการรับรอง: | CO.CQ |
| หมายเลขรุ่น: | 330102-00-20-10-11-05 |

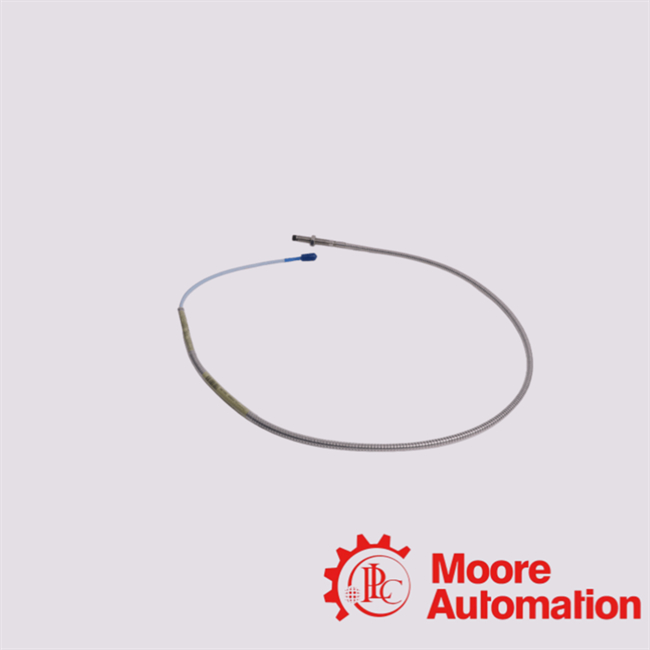

The “3301xx / 3300 XL” series from Bently Nevada is a line of eddy-current proximity (displacement) probes
used for noncontact measurement of shaft position, vibration,
and displacement in rotating machinery.
330102-00-20-10-11-05 Details
|
FAQ |
|
P1:What is the sensitivity of this probe? R1: Typically 200 mV per mil (≈ 7.87 V/mm). |
|
P2:Can I swap or interchange with other 3300 probes or cables? R2: Yes, the 3300 / 3300 XL design supports interchangeability among probes, extension cables, and Proximitors without individual matching. |
|
P3: What environmental conditions can it handle? R3:It’s built for harsh industrial environments, resistant to mechanical stress, temperature extremes (depending on version), and with good insulation resistance. |
|
P4:How to select the correct gap / calibration offset? The gap (distance from probe tip to target) should be set according to Bently’s recommended range; calibration is typically done during commissioning with known reference distances. Consult the system documentation. |
