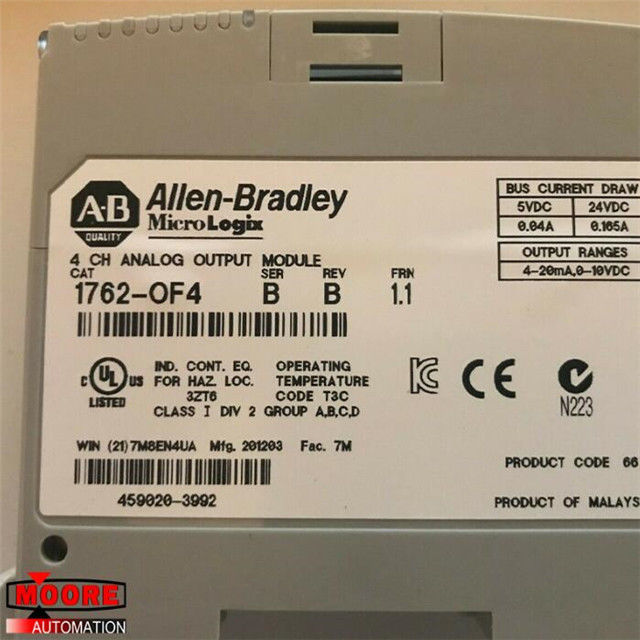

1762-OF4 Allen Bradley AB MicroLogix โมดูลเอาท์พุทแบบอะนาล็อก 4 จุด
⇒คลิกที่นี่เพื่อราคาดี 1762-OF4
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1762-OF4 |
หมายเลขชิ้นส่วนอื่น | 1762-OF4 |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
17x11x5.3cm |
น้ำหนัก | 0.2 กิโลกรัม |
รายละเอียดสินค้า
The AB 1762-0F4 is an analog output module that weighs only 235 grams. AB 1762-0F4 เป็นโมดูลเอาท์พุทแบบอะนาล็อกที่มีน้ำหนักเพียง 235 กรัม It has 4 single-ended outputs with output times of 2.5 milliseconds. มันมี 4 เอาท์พุทเดี่ยวจบด้วยเวลาเอาท์พุท 2.5 มิลลิวินาที The resistive load on the current output, including wire resistance, varies between 0 and 500 ohms. โหลดตัวต้านทานบนเอาต์พุตปัจจุบันรวมถึงความต้านทานของสายต่าง ๆ จะอยู่ระหว่าง 0 ถึง 500 โอห์ม The load range on voltage output is more than 1 KΩ. ช่วงโหลดของเอาต์พุตแรงดันมีค่ามากกว่า 1 KΩ If it is a current output, the reactive load will be less than 0.1 mH. หากเป็นเอาต์พุตปัจจุบันโหลดรีแอกทีฟจะน้อยกว่า 0.1 mH If the output is voltage, the reactive load will be less than 1 μF. หากเอาต์พุตเป็นแรงดันโหลดปฏิกิริยาจะน้อยกว่า 1 μF There are two typical overall accuracies for the 1762-0F4, depending on the temperature. มีความแม่นยำโดยรวมสองแบบสำหรับปี 1762-0F4 ขึ้นอยู่กับอุณหภูมิ Between -20 and 65 degrees Celsius, the typical overall accuracy is ± 1.17% full scale. ระหว่าง -20 ถึง 65 องศาเซลเซียสความแม่นยำโดยรวมโดยทั่วไปคือเต็มสเกล± 1.17% At 25 degrees Celsius, the typical overall accuracy is ± 0.5%. ที่ 25 องศาเซลเซียสความแม่นยำโดยรวมทั่วไปอยู่ที่± 0.5% The typical overall accuracy includes terms for gain, offset, non-linearity, and repeatability error. ความถูกต้องโดยรวมทั่วไปรวมถึงข้อกำหนดสำหรับการได้รับการชดเชยการไม่เป็นเชิงเส้นและข้อผิดพลาดการทำซ้ำ The output protection value of the 1762-0F4 is ± 32 mA. ค่าการป้องกันเอาต์พุตของ 1762-0F4 คือ± 32 mA
The 1762-0F4 has a heat dissipation of only 2.8 Watts, making this a high-efficiency module. 1762-0F4 มีการกระจายความร้อนเพียง 2.8 วัตต์ทำให้โมดูลนี้มีประสิทธิภาพสูง Use shielded Belden 8761 cable for this module because is sensitive to electrostatic discharge (ESD). ใช้สายเคเบิล Belden 8761 ที่หุ้มฉนวนสำหรับโมดูลนี้เนื่องจากมีความไวต่อการคายประจุไฟฟ้าสถิต (ESD) Follow ESD prevention guidelines during installation. ปฏิบัติตามแนวทางการป้องกัน ESD ระหว่างการติดตั้ง The 1762-0F4 is meant to be mounted to a well-grounded surface such as a metal panel. 1762-0F4 นั้นถูกติดตั้งบนพื้นผิวที่มีการลงดินอย่างดีเช่นแผงโลหะ Extra grounding connections from the mounting tabs or the DIN rail (if one is used) are not necessary unless the mounting surface itself cannot be grounded. การเชื่อมต่อสายดินพิเศษจากแท็บติดตั้งหรือราง DIN (หากใช้) ไม่จำเป็นเว้นแต่ว่าพื้นผิวการติดตั้งนั้นไม่สามารถต่อลงดินได้ The 1762-0F4 must be mounted horizontally. 1762-0F4 จะต้องติดตั้งในแนวนอน
