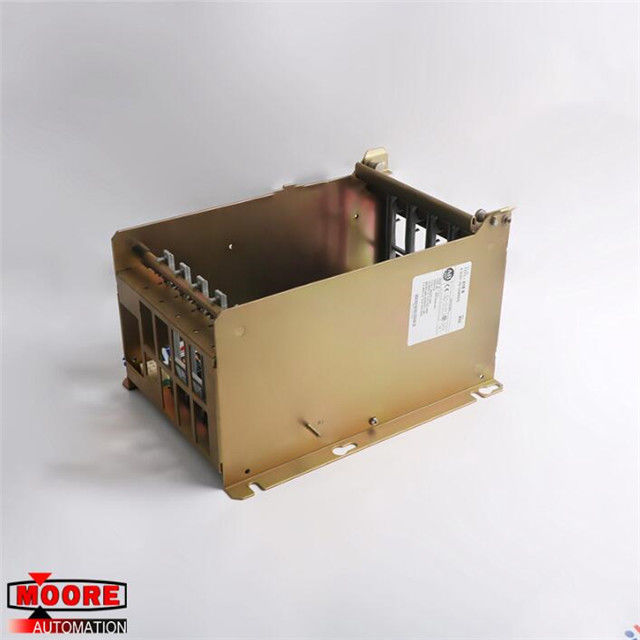

1771-A1B Allen Bradley AB 4 สล็อต I / O โครงติดตั้งแชสซี
⇒คลิกที่นี่เพื่อราคาดี 1771-A1B
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1771-A1B |
หมายเลขชิ้นส่วนอื่น | 1771-A1B |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
31.5x23x19.5cm |
น้ำหนัก | 3.6 กก |
รายละเอียดสินค้า
The 1771-A1B is an AB PLC-5 Chassis . 1771-A1B เป็นแชสซี AB PLC-5 The AB 1771-A1B chassis is the backbone of every AB PLC-5 programmable controller system. แชสซี AB 1771-A1B เป็นกระดูกสันหลังของทุกระบบควบคุม PLC-5 ที่สามารถตั้งโปรแกรมได้ของ AB This chassis provides a communication path between various I/O modules and either the controller or the I/O adapter module. แชสซีนี้มีเส้นทางการสื่อสารระหว่างโมดูล I / O ต่างๆและตัวควบคุมหรือโมดูลอะแดปเตอร์ I / O 1771-A1B is a universal and compact enclosure for the processor, power-supply modules, remote and extended-local I/O adapter modules, and I/O modules. 1771-A1B เป็นกล่องหุ้มอเนกประสงค์และกะทัดรัดสำหรับโปรเซสเซอร์, โมดูลจ่ายไฟ, โมดูลอะแดปเตอร์ I / O ระยะไกลและขยายในท้องถิ่นและโมดูล I / O 1771-A1B chassis has 4 slots for mounting various modules. แชสซี 1771-A1B มี 4 ช่องสำหรับติดตั้งโมดูลต่างๆ The far-left slot of 1771-A1B chassis is reserved for either the processor or adapter module. ช่องด้านซ้ายสุดของแชสซี 1771-A1B สงวนไว้สำหรับโปรเซสเซอร์หรือโมดูลอะแดปเตอร์ The other slots in the chassis are compatible with communication modules, I/O modules, and power-supply modules. สล็อตอื่น ๆ ในแชสซีนั้นเข้ากันได้กับโมดูลการสื่อสารโมดูล I / O และโมดูลเพาเวอร์ซัพพลาย It is crucial to follow the compatibility tables for each PLC-5/1771 module. จำเป็นต้องปฏิบัติตามตารางความเข้ากันได้สำหรับแต่ละโมดูล PLC-5/1771 Please note the 1771-A1B is part of series B. Power supplies 1771-P1, -P2, -P7 and -PS7 can be mounted on the left side plate of the 1771-A1B chassis. โปรดทราบว่า 1771-A1B เป็นส่วนหนึ่งของชุด B. อุปกรณ์จ่ายไฟ 1771-P1, -P2, -P7 และ -PS7 สามารถติดตั้งที่แผ่นด้านซ้ายของแชสซีของ 1771-A1B
The 1771-A1B chassis is designed for panel mount installation. ตัวถัง 1771-A1B ถูกออกแบบมาสำหรับการติดตั้งแผงยึด 1771-A1B chassis can receive power through processors with integral power supplies that provide 2 to 4 amps, power supply modules that provide 3 to 8 amps, and external power supplies that provide 6.5 to 16 amps. แชสซี 1771-A1B สามารถรับพลังงานผ่านโปรเซสเซอร์ด้วยอุปกรณ์จ่ายไฟที่ให้ 2 ถึง 4 แอมป์โมดูลเพาเวอร์ซัพพลายที่ให้ 3 ถึง 8 แอมป์และอุปกรณ์จ่ายไฟภายนอกที่ให้ 6.5 ถึง 16 แอมป์ The largest back-plane current for the 1771-A1B is 16 amps operating at 5 Volts DC. กระแสหลังเครื่องบินที่ใหญ่ที่สุดสำหรับ 1771-A1B คือ 16 แอมป์ทำงานที่ 5 โวลต์ DC The 1771-A1B chassis must be connected to a central ground bus via grounding studs situated on the chassis itself. แชสซีของ 1771-A1B ต้องเชื่อมต่อกับบัสกราวด์กลางผ่านหมุดดินที่อยู่บนแชสซี The chassis' power supply is configured via the configuration jumper. แหล่งจ่ายไฟของแชสซีนั้นได้รับการกำหนดค่าผ่านจัมเปอร์การกำหนดค่า The jumper has two positions: "N" - position for external power supply, and "Y" - position for power-supply module or processor with and an integral power supply. จัมเปอร์มีสองตำแหน่ง: "N" - ตำแหน่งสำหรับแหล่งจ่ายไฟภายนอกและ "Y" - ตำแหน่งสำหรับโมดูลแหล่งจ่ายไฟหรือโปรเซสเซอร์ด้วยและแหล่งจ่ายไฟแบบรวม 1771-A1B chassis cannot be powered with both a power-supply module and an external power supply at the same time. แชสซี 1771-A1B ไม่สามารถใช้พลังงานได้ทั้งโมดูลแหล่งจ่ายไฟและแหล่งจ่ายไฟภายนอกในเวลาเดียวกัน
