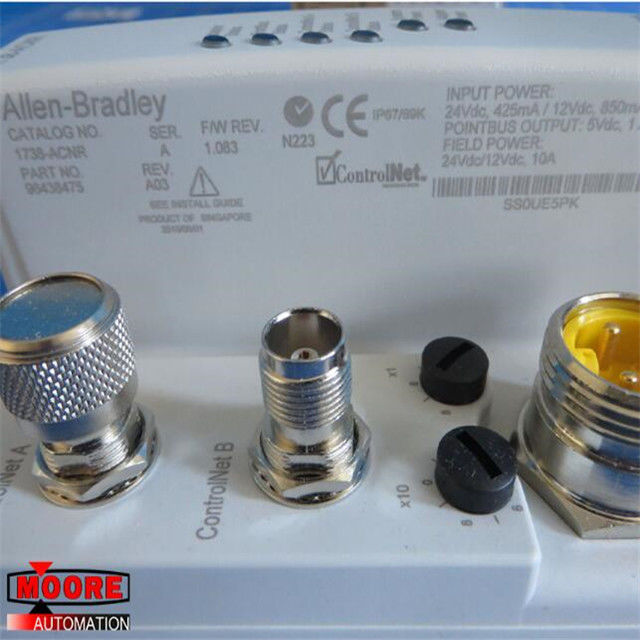

1738-ACNR 1738-ACNR Allen Bradley อะแดปเตอร์ซ้ำซ้อน
⇒คลิกที่นี่เพื่อราคาดี 1738-ACNR
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1738-ACNR |
หมายเลขชิ้นส่วนอื่น | 1738-ACNR |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
8.0 ซม. x 15.2 ซม. x 13.6 ซม |
น้ำหนัก | 1.4 กก |
รายละเอียดสินค้า
The AB 1738-ACNR ArmorPoint ControlNet Adapter can support a maximum of 63 modules, 5 rack-optimized connections, and 25 direct connections. AB 1738-ACNR ArmorPoint Control Adapter Adapter สามารถรองรับโมดูลได้สูงสุด 63 โมดูลการเชื่อมต่อที่ปรับให้เข้ากับชั้นวาง 5 ชั้นและการเชื่อมต่อโดยตรง 25 จุด It has a backplane current output of 1.0 Amp (maximum), although this may be extended beyond 1 Amp with an AB 1738-EP24DC Backplane Extension Power Supply. มีเอาต์พุตแบ็คเพลนปัจจุบัน 1.0 แอมป์ (สูงสุด) แม้ว่าอาจขยายได้เกิน 1 แอมป์พร้อมอัลเลนแบรดลีย์ 1738-EP24DC Backplane ส่วนต่อขยายพาวเวอร์ซัพพลาย The 1738-ACNR adapter gets a 24 Volts Input voltage rating; อะแดปเตอร์ 1738-ACNR ได้รับแรงดันไฟฟ้าอินพุต 24 โวลต์ its inrush current is 6 Amps maximum for 10 milliseconds. กระแสไหลเข้าของมันคือ 6 แอมป์สูงสุดเป็นเวลา 10 มิลลิวินาที Its ControlNet Communication Rate is 5 Megabits per second, and it receives an input voltage rating of 24 Volts, with a 10 to 28.8 Volts voltage range. อัตราการสื่อสารของ ControlNet คือ 5 เมกะบิตต่อวินาทีและได้รับแรงดันไฟฟ้าอินพุต 24 โวลต์โดยมีช่วงแรงดันไฟฟ้า 10 ถึง 28.8 โวลต์ This adapter has a maximum field-side power requirement of 24 Volts at 425 milliamps. อะแด็ปเตอร์นี้มีความต้องการพลังงานด้านฟิลด์สูงสุด 24 โวลต์ที่ 425 มิลลิแอมป์ There are LED indicators to allow the end-users to determine the adapter's status, with 1 green/red adapter status LED, 2 green/red ControlNet status LED, 1 green/red PointBus status LED, 1 green System Power LED, and 1 green Adapter Power LED. มีตัวบ่งชี้ LED เพื่อให้ผู้ใช้ปลายทางสามารถกำหนดสถานะของอะแดปเตอร์ได้ด้วย 1 สถานะอะแดปเตอร์สีเขียว / แดง, LED สีเขียว 2 สถานะ / สีแดงไฟ LED สถานะ ControlNet, 1 สถานะสีเขียว / แดง อะแดปเตอร์ไฟ LED
General specifications on the 1738-ACNR adapter include the maximum power consumption of 10.2 Watts at 28.8 Volts as well as a maximum power dissipation of 5.0 Watts at 28.8 Volts. ข้อมูลจำเพาะทั่วไปของอะแดปเตอร์ 1738-ACNR รวมถึงการใช้พลังงานสูงสุด 10.2 วัตต์ที่ 28.8 โวลต์และกำลังไฟสูงสุด 5.0 วัตต์ที่ 28.8 โวลต์ This adapter's maximum thermal dissipation is 16.9 British Thermal Units (BTU) per hour at 28.8 Volts voltage. การกระจายความร้อนสูงสุดของอแด็ปเตอร์นี้คือ 16.9 หน่วยความร้อนบริติช (BTU) ต่อชั่วโมงที่แรงดันไฟฟ้า 28.8 โวลต์ It also has a Field Power Bus Nominal Voltage of 24 Volts, alongside a supply voltage range of 10 to 28.8 Volts and a supply current of 10 Amps (maximum). นอกจากนี้ยังมีแรงดันไฟฟ้าของบัส Power Field ที่ 24 โวลต์ควบคู่ไปกับช่วงแรงดันไฟฟ้าของซัพพลายที่ 10 ถึง 28.8 โวลต์และกระแสไฟจ่ายที่ 10 แอมป์ (สูงสุด) The operating temperature range that this adapter must be kept within is from -4 to 140 degrees Fahrenheit, along with a storage temperature range between -40 and 185 degrees Fahrenheit. ช่วงอุณหภูมิในการทำงานที่อะแดปเตอร์นี้ต้องอยู่ในช่วง -4 ถึง 140 องศาฟาเรนไฮต์พร้อมกับช่วงอุณหภูมิการเก็บรักษาระหว่าง -40 ถึง 185 องศาฟาเรนไฮต์ The relative humidity of this adapter's operating conditions should be between 5 and 95%, non-condensing. ความชื้นสัมพัทธ์ของสภาพการทำงานของอะแดปเตอร์นี้ควรอยู่ระหว่าง 5 ถึง 95% ซึ่งไม่กลั่นตัว The 1738-ACNR adapter has a Group 1 Class A emissions rating that is compliant with CSPR 11. It has an enclosure type rating that meets IP 65, 66, and 67 standards (when marked). อะแด็ปเตอร์ 1738-ACNR มีการจัดอันดับการปล่อยกลุ่ม 1 คลาส A ที่สอดคล้องกับ CSPR 11 ซึ่งมีการจัดประเภทประเภทกล่องหุ้มที่ตรงตามมาตรฐาน IP 65, 66 และ 67 (เมื่อทำเครื่องหมาย)
