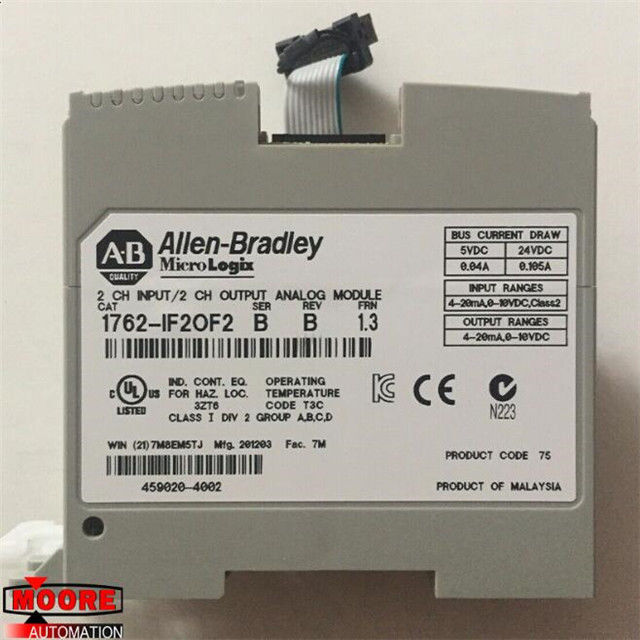

1762-IF20F2 1762IF20F2 Allen Bradley MicroLogix 1200 series module. 1762-IF20F2 1762IF20F2 อัลเลนแบรดลีย์โมดูล MicroLogix 1200 ซีรีส์ It is an Analog Input-Output (I/O) module. มันเป็นโมดูลอนาล็อกอินพุตเอาต์พุต (I / O)
⇒คลิกที่นี่เพื่อราคาดี 1762-IF20F2
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1762-IF20F2 |
หมายเลขชิ้นส่วนอื่น | 1762-IF20F2 |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
14.4x15x4.9cm |
น้ำหนัก | 0.2 กิโลกรัม |
รายละเอียดสินค้า
The 1762-IF2OF2 MicroLogix analog I/O module by AB is an expansion I/O module that connects to MicroLogix 1200 programmable controllers and is built for industrial environments. โมดูล I / O อะนาล็อก 1762-IF2OF2 อะนาล็อก MicroLogix โดย AB เป็นโมดูล I / O ส่วนต่อขยายที่เชื่อมต่อกับตัวควบคุมที่ตั้งโปรแกรมได้ MicroLogix 1200 และสร้างขึ้นสำหรับสภาพแวดล้อมอุตสาหกรรม The 1762-IF2OF2 has 2 differential unipolar inputs with a 2.5-millisecond update time and it uses a successive approximation analog/digital converter. 1762-IF2OF2 มีอินพุตแบบแยกขั้วสองขั้วที่มีเวลาอัปเดต 2.5 มิลลิวินาทีและใช้ตัวแปลงอนาล็อก / ดิจิตอลโดยประมาณที่ต่อเนื่องกัน The 1762-IF2OF2 has a common mode input voltage range of ±27 Volts, with 55 dB at 50 to 60 Hertz in common mode rejection. 1762-IF2OF2 มีช่วงแรงดันไฟฟ้าในโหมดทั่วไปที่± 27 โวลต์โดยมี 55 dB ที่ 50 ถึง 60 เฮิร์ตซ์ในการปฏิเสธโหมดทั่วไป It has ±0.12% non-linearity, and overall accuracy of ±0.55% full at -20 to 65 degrees Celsius (-4 to 149 degrees Fahrenheit), and ±0.3% at 25 degrees Celsius (77 degrees Fahrenheit). มีความไม่เป็นเชิงเส้น± 0.12% และความแม่นยำโดยรวมอยู่ที่± 0.55% ที่ -20 ถึง 65 องศาเซลเซียส (-4 ถึง 149 องศาฟาเรนไฮต์) และ± 0.3% ที่ 25 องศาเซลเซียส (77 องศาฟาเรนไฮต์) It has an input impedance of 200 kOhms at the terminal voltage and 250 Ohms at the terminal current. มีความต้านทานอินพุต 200 kOhms ที่ขั้วแรงดันไฟฟ้าและ 250 Ohms ที่ขั้วกระแส
The 1762-IF2OF2 has an input voltage protection of ±30 Volts and an input current protection of ±32mA. 1762-IF2OF2 มีการป้องกันแรงดันไฟฟ้าอินพุท± 30 โวลต์และการป้องกันกระแสไฟฟ้าอินพุท± 32mA The 1762-IF2OF2 has a maximum BUS draw current of 4 0mA at 5 Volts DC, and 105 mA at 24 Volts DC, with an analog operational voltage range between 0 and 10 Volts DC and 4 and 20 mA, which can reach a full-scale range of 0 to 10.5 Volts DC and 0 to 21 mA. 1762-IF2OF2 มีกระแสบัสสูงสุดที่ 4 0mA ที่ 5 โวลต์ DC และ 105 mA ที่ 24 โวลต์ DC โดยมีช่วงแรงดันไฟฟ้าแบบแอนะล็อกระหว่าง 0 และ 10 โวลต์ DC และ 4 และ 20 mA ซึ่งสามารถเข้าถึงได้เต็ม ช่วงสเกลของ 0 ถึง 10.5 โวลต์ DC และ 0 ถึง 21 mA It has a 12-bit unipolar resolution and repeatability of ±0.12%. มันมีความละเอียด unipolar 12 บิตและการทำซ้ำ± 0.12% The 1762-IF2OF2 has dimensions of 90 x 87 x 40 millimeters (3.54 x 3.43 x 1.58 inches) and it weighs approximately 240 grams (0.53 pounds). 1762-IF2OF2 มีขนาด 90 x 87 x 40 มม. (3.54 x 3.43 x 1.58 นิ้ว) และมีน้ำหนักประมาณ 240 กรัม (0.53 ปอนด์) It has an operational temperature range between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) and a storage temperature between -40 and 85 degrees Celsius (-40 and 185 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. มันมีช่วงอุณหภูมิการทำงานระหว่าง -20 และ 65 องศาเซลเซียส (-4 และ 149 องศาฟาเรนไฮต์) และอุณหภูมิการจัดเก็บระหว่าง -40 และ 85 องศาเซลเซียส (-40 และ 185 องศาฟาเรนไฮต์) ที่ความชื้นสัมพัทธ์ 5 ถึง 95% ไม่กลั่นตัว . The 1762-IF2OF2 is built to function at an altitude of 2000 meters (6561 feet) without derating and to withstand a maximum shock of 30G. 1762-IF2OF2 สร้างขึ้นเพื่อใช้งานที่ระดับความสูง 2,000 เมตร (6561 ฟุต) โดยไม่มีการตัดทอนและทนต่อแรงกระแทกสูงสุด 30G
บริการของเรา
เต็ม 100% ใหม่ - ตราโรงงานเดิม
รับประกัน: 12 เดือน
แพคเกจ: บรรจุเดิมด้วยกล่อง
เวลาการส่งมอบ: จัดส่งใน 3 วันหลังจากการชำระเงิน
