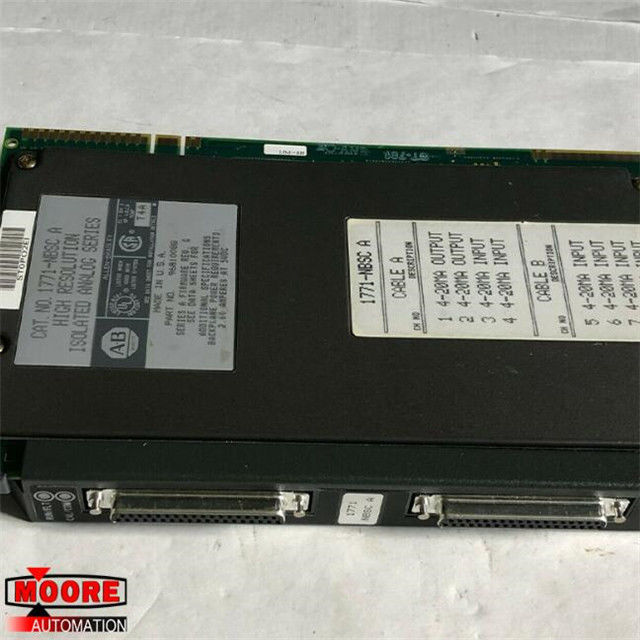

1771-NBSC 1771NBSC แอลเลนแบรดลีย์ PLC 5 N-Series อนาล็อก I / O โมดูล
⇒คลิกที่นี่เพื่อราคาดี 1771-NBSC
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1771-NBSC |
หมายเลขชิ้นส่วนอื่น | 1771-NBSC |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
3.2x15.5x25.5cm |
น้ำหนัก | 0.66 กิโลกรัม |
รายละเอียดสินค้า
The AB 1771-NBSC is an I/O module that is part of the AB 1771-N series of output modules. AB 1771-NBSC เป็นโมดูล I / O ที่เป็นส่วนหนึ่งของชุดเอาท์พุท AB 1771-N It has six 4-20mA current inputs and two 0-25mA current outputs. มีอินพุตปัจจุบัน 4-20mA หกอินพุตและเอาต์พุตปัจจุบัน 0-25mA สองเอาต์พุต The maximum current drawn by the 1771-NBSC I/O module from the chassis backplane is 2.6A and the amount of power it dissipates during operation is 13W. ค่ากระแสไฟสูงสุดที่ดึงออกมาจากโมดูล I / O 1771-NBSC จากแบ็คเพลนของแชสซีคือ 2.6A และปริมาณพลังงานที่มันสิ้นเปลืองระหว่างการทำงานคือ 13W It can be used with the AB PLC-3, PLC-5, and the PLC-5/250 programmable controllers. สามารถใช้ร่วมกับชุดควบคุม AB PLC-3, PLC-5 และ PLC-5/250
For the inputs, the range of the current is 0.1 – 21 mA and the input resolution is 330nA/bit at 16 bits unipolar. สำหรับอินพุตช่วงของกระแสคือ 0.1 - 21 mA และความละเอียดอินพุตคือ 330nA / บิตที่ 16 บิต unipolar The input impedance reaches a maximum of 300ohm. อิมพีแดนซ์อินพุตมีค่าสูงสุด 300 โอห์ม The power supplied by the 1771-NBSC module for the current loop is 20 – 30V DC (0-20mA). กำลังไฟที่จัดทำโดยโมดูล 1771-NBSC สำหรับลูปปัจจุบันคือ 20 - 30V DC (0-20mA) The module provides an input overvoltage protection rated at 24V DC continuous. โมดูลมีการป้องกันแรงดันไฟฟ้าเกินอินพุตที่ระดับ 24V DC อย่างต่อเนื่อง The 1771-NBSC module requires 5s to detect open inputs. โมดูล 1771-NBSC ต้องการ 5s เพื่อตรวจจับอินพุตที่เปิด It offers a 50/60 dB minimum normal mode rejection and the typical common mode rejection is 150 dB. มีการปฏิเสธโหมดปกติขั้นต่ำ 50/60 dB และการปฏิเสธโหมดทั่วไปทั่วไปคือ 150 เดซิเบล The offset drift and the gain drift are ±200nA/°C and ±95 ppm/°C respectively. ออฟเซ็ตดริฟท์และดริฟท์เกนคือ± 200nA / ° C และ± 95 ppm / ° C ตามลำดับ The 1771-NBSC's range of input bandwidth is 9Hz and the calibration values are 1.000mA/21.000mA. ช่วงของแบนด์วิดท์อินพุต 1771-NBSC คือ 9Hz และค่าการสอบเทียบคือ 1.000mA / 21.000mA The under range and over range thresholds are 3.2mA and 21mA respectively. ช่วงต่ำกว่าและสูงกว่าขีด จำกัด ช่วงคือ 3.2mA และ 21mA ตามลำดับ
