1734-IR2 1734IR2 อัลเลนแบรดลีย์ AB มี 2 อินพุตเดี่ยวสิ้นสุดไม่แยกและประเภทการแปลงของ Delta Sigma ด้วย
⇒คลิกที่นี่เพื่อราคาดี 1734-IR2
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
1734-IR2 |
หมายเลขชิ้นส่วนอื่น | 1734-IR2 |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
11.4x13x10.5cm |
น้ำหนัก | 0.58 กิโลกรัม |
รายละเอียดสินค้า

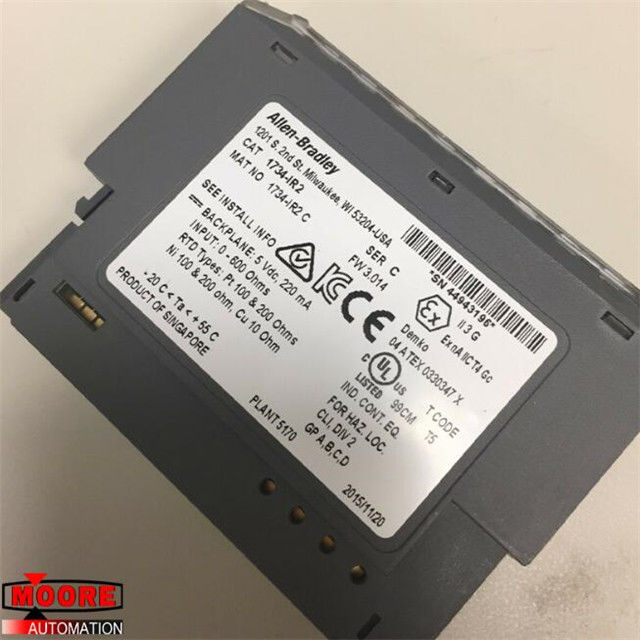

The AB 1734-IR2 is a POINT analog temperature input module. AB 1734-IR2 เป็นโมดูลอินพุตอุณหภูมิแบบอะนาล็อก POINT Two single-ended, non-isolated RTD inputs are available and configuration is needed for the required linearization of the inputs. มีอินพุต RTD แบบเดี่ยวและไม่มีแยกสองชุดและการกำหนดค่าเป็นสิ่งจำเป็นสำหรับการแปลงสัญญาณเชิงเส้นที่ต้องการของอินพุต Status indicators allow the users to monitor its current network status, module status, and the status of the two inputs. ตัวบ่งชี้สถานะอนุญาตให้ผู้ใช้ตรวจสอบสถานะเครือข่ายปัจจุบันสถานะโมดูลและสถานะของอินพุตทั้งสอง The 1734-IR2 measures 2.21 x 0.47 x. 1734-IR2 วัด 2.21 x 0.47 x 2.97 inches, it weighs 0.036 kilograms or 0.08 pounds and it has an open-type enclosure. 2.97 นิ้วน้ำหนัก 0.036 กิโลกรัมหรือ 0.08 ปอนด์และมีตัวเครื่องแบบเปิด It can be mounted using a DIN rail and it is compatible with the 1734-TB, 1734-TBS, 1734-TOP, or the 1734-TOPS terminal base unit. สามารถติดตั้งได้โดยใช้ราง DIN และใช้งานได้กับ 1734-TB, 1734-TBS, 1734-TOP หรือยูนิตฐานขั้ว 1734-TOPS
The resolution of the module is 16 bits at 9.5 milliohms/cnt and 0.03 degrees Celsius/cnt. ความละเอียดของโมดูลคือ 16 บิตที่ 9.5 milliohms / cnt และ 0.03 องศาเซลเซียส / cnt It also has a Delta Sigma conversion type and a signed integer data format. นอกจากนี้ยังมีประเภทการแปลง Delta Sigma และรูปแบบข้อมูลจำนวนเต็มที่ลงนาม Operators can choose the module's temperature data format from four predefined scales: Celsius, Fahrenheit, Kelvin, and Rankine, and one custom scale (mV). ผู้ปฏิบัติงานสามารถเลือกรูปแบบข้อมูลอุณหภูมิของโมดูลได้จากสเกลสี่แบบที่กำหนดไว้ล่วงหน้า: เซลเซียสฟาเรนไฮต์เคลวินและแรนคินและหนึ่งสเกลที่กำหนดเอง (mV) The 1734-IR2 module also has alarms that will alerts users to under-range, over-range, open-wire, and low or high-level conditions. โมดูล 1734-IR2 ยังมีการเตือนที่จะแจ้งเตือนผู้ใช้ภายใต้ช่วง, ช่วง, เปิดสายและเงื่อนไขต่ำหรือระดับสูง There is no maximum overload input protection for the 1734-IR2 and no external DC power is required to run it. ไม่มีการป้องกันอินพุตโอเวอร์โหลดสูงสุดสำหรับ 1734-IR2 และไม่จำเป็นต้องใช้แหล่งจ่ายไฟ DC ภายนอกเพื่อเรียกใช้
The 1734-IR2's inputs are 15 mA 0 to 10 Volts, and +/-10 Volts, while its nominal input is 24 Volts DC. อินพุตของ 1734-IR2 คือ 15 mA 0 ถึง 10 Volts และ +/- 10 Volts ในขณะที่อินพุตเล็กน้อยคือ 24 Volts DC It has an input range of 0 to 600 ohms and a maximum POINTbus current of 220 mA at 5 Volts DC. มีช่วงอินพุตตั้งแต่ 0 ถึง 600 โอห์มและกระแส POINTbus สูงสุด 220 mA ที่ 5 โวลท์ DC The maximum power dissipation of the module is 1 Watts and the maximum thermal dissipation is 3.3 BTU/hour. การกระจายพลังงานสูงสุดของโมดูลคือ 1 วัตต์และการระบายความร้อนสูงสุดคือ 3.3 BTU / ชั่วโมง It also has a non-condensing relative humidity of 5 to 95%, an operating temperature range of -20 to 55 degrees Celsius, and a storage temperature range of -40 to 85 degrees Celsius. นอกจากนี้ยังมีความชื้นสัมพัทธ์แบบไม่กลั่นตัว 5 ถึง 95% ช่วงอุณหภูมิการทำงานที่ -20 ถึง 55 องศาเซลเซียสและช่วงอุณหภูมิการเก็บรักษาที่ -40 ถึง 85 องศาเซลเซียส The 1734-IR2's operating shock rating is 30 g, its non-operating shock rating is 50 g, and its operating vibration is 5 g at 10 to 500 Hertz. ระดับแรงกระแทกในการทำงานของ 1734-IR2 คือ 30 กรัม, ระดับแรงกระแทกที่ไม่ได้ใช้งานคือ 50 กรัมและการสั่นสะเทือนขณะทำงานอยู่ที่ 5 กรัมที่ 10 ถึง 500 เฮิร์ตซ์ The 1734-IR2 also has a continuous isolation voltage of 50 Volts from I/O to the system. 1734-IR2 ยังมีแรงดันไฟฟ้าแยกอย่างต่อเนื่องที่ 50 โวลต์จาก I / O ไปยังระบบ
ทำไมต้องเลือกมัวร์?
The reason is simple. เหตุผลง่าย ๆ We offer the best value on quality industrial equipment covered by industry leading buyer protection. เราเสนอราคาที่ดีที่สุดในอุปกรณ์อุตสาหกรรมคุณภาพที่ครอบคลุมโดยการป้องกันผู้ซื้อชั้นนำของอุตสาหกรรม
ทีมขายของ amikon ทำการสแกนเว็บอย่างต่อเนื่องเพื่อให้แน่ใจว่าเราเสนอราคาที่ถูกที่สุด
อย่างไรก็ตามหากคุณคิดว่าเราสามารถทำได้ดีกว่าอย่าลังเลที่จะเสนอผลิตภัณฑ์ใด ๆ ของเรา
We pride ourselves on saving you money! เราภูมิใจในการประหยัดเงินของคุณ! Here is how to make an offer. นี่คือวิธีการทำข้อเสนอ
The Offers Team does its best to respond to offers in a timely manner. ทีมข้อเสนอทำอย่างดีที่สุดเพื่อตอบสนองต่อข้อเสนอในเวลาที่เหมาะสม Typical turn-around time for an offer is 24 hours. เวลาในการทำข้อเสนอทั่วไปคือ 24 ชั่วโมง
