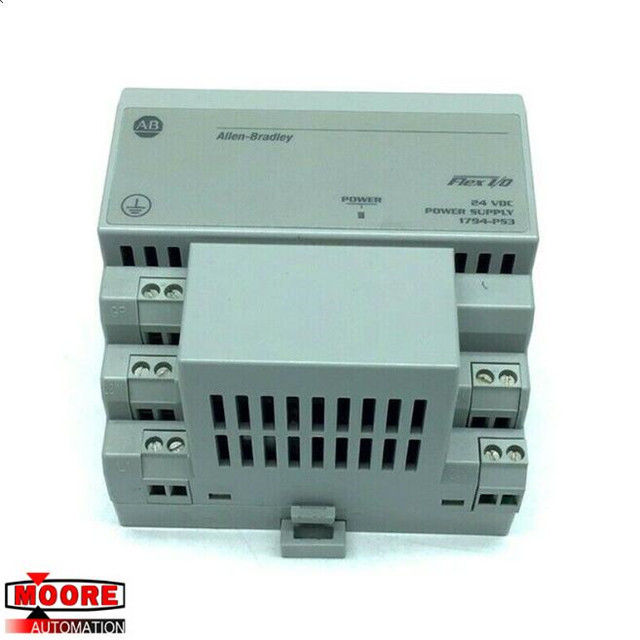

1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply
  • 1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply
  • 1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply

1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply

สถานที่กำเนิด สหรัฐอเมริกา
ชื่อแบรนด์ AB
ได้รับการรับรอง CO.CQ
หมายเลขรุ่น 1794-PS3
รายละเอียดสินค้า
ผลิตปี:
2020
ระบบ Con 6DS1311-8AEtrol:
1794-PS3
ใบสมัคร:
โรงไฟฟ้านิวเคลียร์
เวลานำ:
มีสินค้า
ลักษณะ:
อัลเลนแบรดลีย์
น้ำหนัก:
£ 4
แสงสูง:

โมดูล allen bradley io

,

โมดูล allen bradley plc

เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1
ราคา
inquiry
รายละเอียดการบรรจุ
ใหม่และเป็นต้นฉบับพร้อมโรงงานปิดผนึก
เวลาการส่งมอบ
ในวันนี้
เงื่อนไขการชำระเงิน
T / T
สามารถในการผลิต
10 ชิ้นต่อวัน
รายละเอียดสินค้า



1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply



⇒คลิกที่นี่เพื่อราคาดี 1794-PS3



ยี่ห้อ / ผู้ผลิต อัลเลนแบรดลีย์ / USA
ส่วนจำนวน

1794-PS3

หมายเลขชิ้นส่วนอื่น 1794-PS3
ลักษณะ เซอร์โวมอเตอร์
Dimennsions

13.5x13.2x9.2cm

น้ำหนัก   0.5 กิโลกรัม



รายละเอียดสินค้า

The AB 1794-PS3 is a FLEX I/O DC power supply module. AB 1794-PS3 เป็นโมดูลแหล่งจ่ายไฟ FLEX I / O DC It can provide up to 10 adapter modules with 24 Volts DC power. สามารถจัดหาได้มากถึง 10 โมดูลอะแดปเตอร์ที่มีไฟ DC 24 โวลต์ Users can also use the 1794-PS3 module to provide power to an entire FLEX I/O system. ผู้ใช้ยังสามารถใช้โมดูล 1794-PS3 เพื่อให้พลังงานกับระบบ FLEX I / O ทั้งหมด This module can convert 120 or 230 Volts AC to 24 Volts DC at 3 Amps when it is mounted horizontally or at 2.8 Amps when mounted vertically. โมดูลนี้สามารถแปลง AC 120 หรือ 230 โวลต์เป็น 24 โวลต์ DC ที่ 3 แอมป์เมื่อติดตั้งในแนวนอนหรือที่ 2.8 แอมป์เมื่อติดตั้งในแนวตั้ง Note that either 3 Amps or 2.8 Amps is the module's maximum output current, depending on its mounting. โปรดทราบว่า 3 แอมป์หรือ 2.8 แอมป์เป็นกระแสไฟออกสูงสุดของโมดูลขึ้นอยู่กับการติดตั้ง The entire module measures 3.7 x 2.7 x 3.4 inches. โมดูลทั้งหมดมีขนาด 3.7 x 2.7 x 3.4 นิ้ว It uses an open-style enclosure and can be mounted horizontally or vertically using a DIN rail or panel mount. มันใช้กล่องหุ้มแบบเปิดและสามารถติดตั้งในแนวนอนหรือแนวตั้งโดยใช้ราง DIN หรือแผงยึด It requires an isolation between the DC output terminals and AC input terminals. มันต้องมีการแยกระหว่างขั้วเอาท์พุท DC และขั้วอินพุต AC



The nominal power supply input voltage of this module is 120 to 230 Volts AC, 47 to 63 Hertz, and 1.4 Amps (for 120 Volts AC) or 0.8 Amps (for 230 Volts AC), while its nominal output voltage is 24 Volts DC. แรงดันไฟฟ้าของแหล่งจ่ายไฟเล็กน้อยของโมดูลนี้คือ 120 ถึง 230 โวลต์ AC, 47 ถึง 63 เฮิร์ตซ์และ 1.4 แอมป์ (สำหรับ 120 โวลต์ AC) หรือ 0.8 แอมป์ (สำหรับ 230 โวลต์ AC) ในขณะที่แรงดันเอาท์พุทเล็กน้อยคือ 24 โวลต์ DC It also has a power supply input power of 86 W, a maximum apparent input power of 205 VA, and a maximum transformer load of 250 VA. นอกจากนี้ยังมีกำลังไฟฟ้าเข้า 86 W, กำลังไฟฟ้าเข้าชัดเจนสูงสุด 205 VA และโหลดหม้อแปลงไฟฟ้าสูงสุด 250 VA The maximum input current of this module is 1.9 Amps, minimum load is 50 mA, output power is 72 W, and output ripple is a maximum of +/-5% 1200mV peak-to-peak. กระแสไฟเข้าสูงสุดของโมดูลนี้คือ 1.9 แอมป์โหลดขั้นต่ำ 50 mA กำลังขับ 72 W และระลอกคลื่นเอาต์พุตสูงสุด +/- 5% 1200mV สูงสุดถึงยอด The 1794-PS3 module also has a leakage current of a maximum of 0.5 mA RMS at the rated input and output and an overcurrent protection of up to 3.2 Amps. โมดูล 1794-PS3 ยังมีกระแสไฟรั่วสูงสุด 0.5 mA RMS ที่อินพุตและเอาต์พุตที่ได้รับการจัดอันดับและการป้องกันกระแสเกินสูงถึง 3.2 แอมป์ Its power dissipation is 12 W while its thermal dissipation is 41 BTU/hour. กำลังงานสูญเสียพลังงาน 12 W ในขณะที่การระบายความร้อน 41 ตันต่อชั่วโมง

1794-PS3 1794PS3 Allen Bradley AB Flex Power Supply 0
