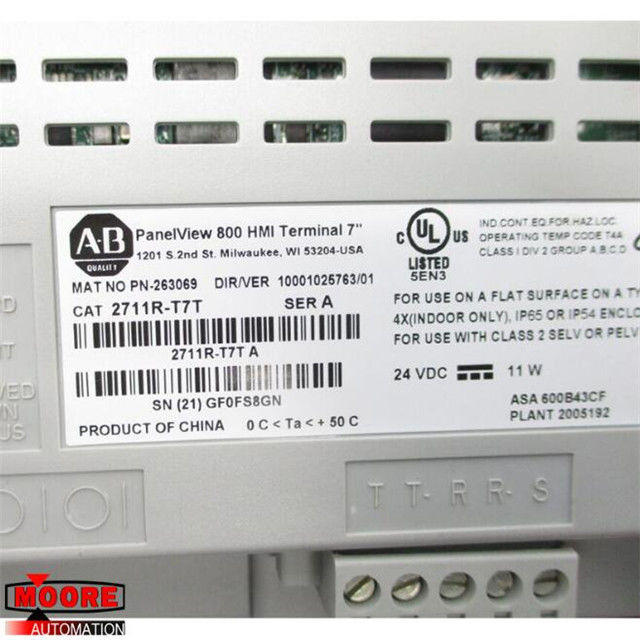

2711R-T7T 2711RT7T Allen Bradley AB พาเนลวิว 800 7-inch HMI TERMINAL
⇒คลิกที่นี่เพื่อราคาดี 2711R-T7T
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
2711R-T7T |
หมายเลขชิ้นส่วนอื่น | 2711R-T7T |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
39x24.5x8cm |
น้ำหนัก | 1.16 กิโลกรัม |
รายละเอียดสินค้า
The AB 2711R-T7T is a PanelView 800 HMI terminal featuring a colored touchscreen display. AB 2711R-T7T เป็นเทอร์มินัล PanelView 800 HMI ที่มีหน้าจอสัมผัสสี It is primarily used to monitor and control devices that are connected to a controller. ส่วนใหญ่จะใช้ในการตรวจสอบและควบคุมอุปกรณ์ที่เชื่อมต่อกับตัวควบคุม The color transmissive TFT matrix LCD touchscreen measures 7 inches, has 65K colors and has a WVGA resolution of 800 x 480. It is in a widescreen format with a display area of 6.05 x 3.41 inches. หน้าจอสัมผัส TFT matrix แบบสัมผัสสี TFT ขนาด 7 นิ้วมี 65K สีและมีความละเอียด WVGA 800 x 480 ในรูปแบบไวด์สกรีนที่มีพื้นที่แสดง 6.05 x 3.41 นิ้ว It also has an LED backlight and the display has a minimum lifespan of 40,000 hours, or 5 years, at 25 degrees Celsius. นอกจากนี้ยังมีแสงไฟ LED และจอแสดงผลมีอายุการใช้งานขั้นต่ำ 40,000 ชั่วโมงหรือ 5 ปีที่ 25 องศาเซลเซียส The terminal comes with a 256 MB internal storage and a 256 MB DDR RAM, and the processor has an 800 MHz CPU speed. เทอร์มินัลมาพร้อมกับที่เก็บข้อมูลภายใน 256 MB และ RAM DDR 256 MB และโปรเซสเซอร์มีความเร็ว CPU 800 MHz The 2711R-T7T has a resistive touch input type and comes with a microSD slot for additional memory. 2711R-T7T มีประเภทอินพุตสัมผัสแบบต้านทานและมาพร้อมกับช่องเสียบ microSD สำหรับหน่วยความจำเพิ่มเติม If users plan to use a microSD card, make sure to use industrial grade cards. หากผู้ใช้วางแผนที่จะใช้การ์ด microSD ตรวจสอบให้แน่ใจว่าใช้การ์ดระดับอุตสาหกรรม It is compatible with Class 10 SDHC microSD cards of up to 32 GB. สามารถใช้งานร่วมกับการ์ด microSD แบบ SDHC Class 10 สูงสุด 32 GB The terminal's USB 2.0 and Ethernet (10/100 Mbps) ports allow users to connect to different networks. พอร์ต USB 2.0 และ Ethernet (10/100 Mbps) ของเทอร์มินัลอนุญาตให้ผู้ใช้เชื่อมต่อกับเครือข่ายต่างๆ This terminal also has separate RS-232 and RS-422/RS-485 connectors as well as a real-time clock with a battery included. เทอร์มินัลนี้ยังมีขั้วต่อ RS-232 และ RS-422 / RS-485 แยกต่างหากรวมถึงนาฬิกาแบบเรียลไทม์พร้อมแบตเตอรี่ The 2711R-T7T measures 5.67 x 7.75 x 2.13 inches and weighs 0.651 kilograms or 1.44 pounds. 2711R-T7T มีขนาด 5.67 x 7.75 x 2.13 นิ้วและหนัก 0.651 กิโลกรัมหรือ 1.44 ปอนด์
The 2711R-T7T terminal is optimized to be compatible with the MicroLogix, Micro800, and CompactLogix 5370 (except for CompactLogix 5370-L37) controllers. เทอร์มินัล 2711R-T7T ได้รับการปรับให้เหมาะสมเพื่อให้เข้ากันได้กับ MicroLogix, Micro800 และ CompactLogix 5370 (ยกเว้นสำหรับคอนโทรลเลอร์ CompactLogix 5370-L37) Users can configure this HMI terminal using the Connected Components Workbench software, version 8.0 and later, and it is compatible with the Microsoft Windows CE 6.0 operating system. ผู้ใช้สามารถกำหนดค่าเทอร์มินัล HMI นี้ได้โดยใช้ซอฟต์แวร์ Connected Components Workbench เวอร์ชัน 8.0 และใหม่กว่าและเข้ากันได้กับระบบปฏิบัติการ Microsoft Windows CE 6.0 The terminal displays alarm messages with embedded variables and it also has uploading and downloading capabilities for data or parameter settings with recipe capability. เทอร์มินัลแสดงข้อความเตือนพร้อมตัวแปรฝังตัวและยังมีการอัพโหลดและดาวน์โหลดความสามารถสำหรับการตั้งค่าข้อมูลหรือพารามิเตอร์ด้วยความสามารถในการทำสูตร Fifty recipe files are present with this terminal. มีไฟล์สูตรห้าสิบสูตรด้วยเทอร์มินัลนี้ The nominal input voltage of the 2711R-T7T is 24 Volts DC while its input voltage range is from 18 to 32 Volts DC. แรงดันไฟฟ้าอินพุตเล็กน้อยของ 2711R-T7T คือ 24 Volts DC ในขณะที่ช่วงแรงดันไฟฟ้าอินพุตอยู่ระหว่าง 18 ถึง 32 Volts DC It also has a maximum power consumption of 11 Watts or 0.40 Amps at 24 Volts DC and a heat dissipation of 34 BTU/hour. นอกจากนี้ยังมีการใช้พลังงานสูงสุด 11 วัตต์หรือ 0.40 แอมป์ที่ 24 โวลต์ DC และการกระจายความร้อน 34 BTU / ชั่วโมง Note that it requires that the environment's ambient temperature fall within a range of 0 to 50 degrees Celsius. โปรดทราบว่ามันต้องการอุณหภูมิของสภาพแวดล้อมที่อยู่ในช่วง 0 ถึง 50 องศาเซลเซียส The terminal's operating temperature ranges from 0 to 50 degrees Celsius and its non-operating temperature range is from -25 to 75 degrees Celsius. อุณหภูมิในการทำงานของเทอร์มินัลอยู่ระหว่าง 0 ถึง 50 องศาเซลเซียสและช่วงอุณหภูมิที่ไม่ทำงานคือ -25 ถึง 75 องศาเซลเซียส It also has an operating vibration of 2 G at 10 to 500 Hertz, an operating shock of 15 G, and non-operating shock of 30 G. Its non-condensing relative humidity is 5 to 95%. นอกจากนี้ยังมีการสั่นสะเทือนของการดำเนินงาน 2 G ที่ 10 ถึง 500 เฮิร์ตซ์, ช็อตการดำเนินงานของ 15G และช็อตที่ไม่ใช่ปฏิบัติการ 30 กรัมความชื้นสัมพัทธ์ไม่กลั่นตัวเป็น 5 ถึง 95%
