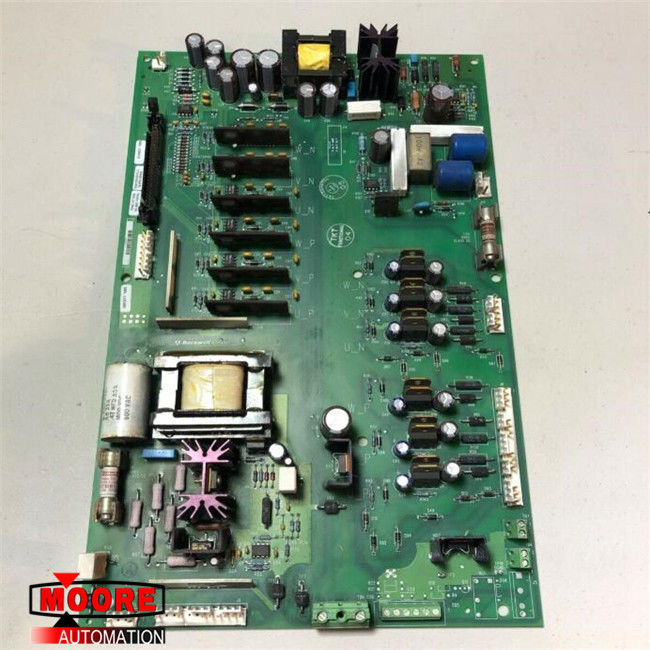

74101-169-54 AB AB PCB GATE DRIVE
⇒คลิกที่นี่เพื่อราคาดี74101-169-54
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
74101-169-54 |
หมายเลขชิ้นส่วนอื่น | 74101-169-54 |
ลักษณะ | PCB GATE DRIVE |
Dimennsions | 6.9 ซม. x 14.9 ซม. x 3.0 ซม |
น้ำหนัก | 0.4kg |
รายละเอียดสินค้า
The 74101-169-54 is a PCB gate drive board, manufactured and designed by AB. 74101-169-54 เป็นบอร์ดไดรฟ์ PCB gate ผลิตและออกแบบโดย AB This board is a spare part that belongs to the 1336 series of adjustable frequency AC drives. บอร์ดนี้เป็นชิ้นส่วนอะไหล่ที่เป็นของไดรฟ์ AC ความถี่แบบปรับได้ 1336 ซีรี่ส์ This part can also be found under the catalog number 1336-BDB-SP30D. ส่วนนี้สามารถพบได้ภายใต้หมายเลขแคตตาล็อก 1336-BDB-SP30D A gate driver consists basically of a level shifter; ตัวขับเกตประกอบด้วยพื้นของตัวเปลี่ยนระดับ it receives low-power input and it produces at the same time a high-current drive input. ได้รับอินพุตที่ใช้พลังงานต่ำและผลิตในเวลาเดียวกันกับอินพุตของไดรฟ์กระแสสูง It also has the ability to isolate voltage. นอกจากนี้ยังมีความสามารถในการแยกแรงดันไฟฟ้า The AB 74101-169-54 PCB gate drive board operates with an input voltage of 460 Volts AC and it delivers an output of 100 HP. AB 74101-169-54 แผงวงจรขับ PCB gate ทำงานด้วยแรงดันไฟฟ้าอินพุต 460 โวลต์ AC และให้กำลัง 100 HP Its versatility makes it suitable and able to operate with other equipment with frames A, B, C, D, and E. ความสามารถรอบด้านทำให้เหมาะและใช้งานกับอุปกรณ์อื่นที่มีเฟรม A, B, C, D และ E
The 74101-169-54 PCB gate drive board needs to be installed on the base driver board located below the main control board. 74101-169-54 ต้องมีการติดตั้งบอร์ดไดรฟ์เกท PCB บนบอร์ดไดร์เวอร์ฐานซึ่งอยู่ด้านล่างบอร์ดควบคุมหลัก It is a very fragile part that is intended for use with the adjustable frequency AC drive, so it is fully recommended that only an authorized technician performs this installation to guarantee the proper functioning of all parts, including the drive. เป็นชิ้นส่วนที่บอบบางมากซึ่งมีไว้สำหรับใช้กับไดรฟ์ AC แบบปรับความถี่ได้ดังนั้นจึงขอแนะนำอย่างเต็มที่ให้ช่างเทคนิคที่ได้รับอนุญาตทำการติดตั้งนี้เพื่อรับประกันการทำงานที่เหมาะสมของทุกส่วนรวมถึงไดรฟ์ Even though the AB 74101-169-54 PCB gate drive board is located inside the drive, as any other electronic part it can be affected by the operating conditions. แม้ว่าอัลเลนแบรดลีย์ 74101-169-54 บอร์ดไดรฟ์เกต PCB จะอยู่ภายในไดรฟ์เช่นเดียวกับชิ้นส่วนอิเล็กทรอนิกส์อื่น ๆ ก็สามารถได้รับผลกระทบจากสภาพการใช้งาน These conditions should not exceed the established parameters in order to guarantee an optimum performance. เงื่อนไขเหล่านี้ไม่ควรเกินพารามิเตอร์ที่กำหนดไว้เพื่อรับประกันประสิทธิภาพสูงสุด The recommended operating conditions should not overpass a temperature range from 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit), an altitude of 1000 meters (2200 feet) and shocks higher than the 15G peak for an 11-millisecond duration. เงื่อนไขการใช้งานที่แนะนำไม่ควรเกินช่วงอุณหภูมิตั้งแต่ 0 ถึง 50 องศาเซลเซียส (32 ถึง 122 องศาฟาเรนไฮต์) ระดับความสูง 1,000 เมตร (2200 ฟุต) และแรงกระแทกสูงกว่าสูงสุด 15G เป็นเวลา 11 มิลลิวินาที
