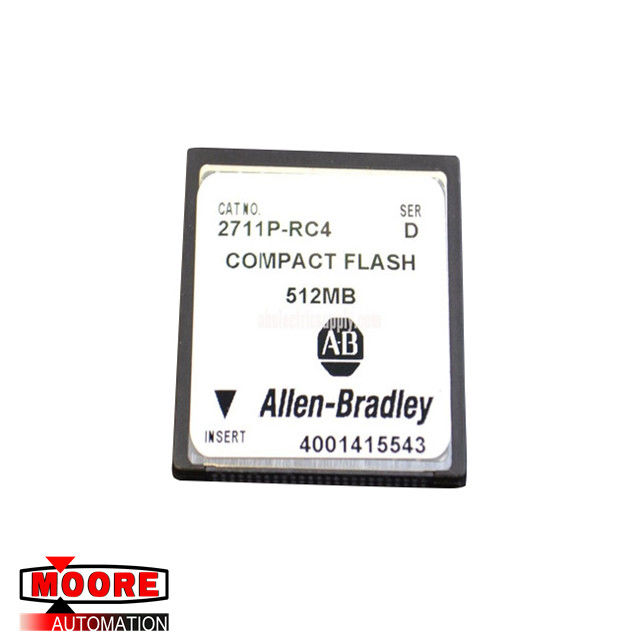

2711P-RC4 AB AB PanelView Plus การ์ดหน่วยความจำ Ext 512MB
⇒คลิกที่นี่เพื่อราคาดี2711P-RC4
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
2711P-RC4 |
หมายเลขชิ้นส่วนอื่น | 2711P-RC4 |
ลักษณะ | PanelView Plus 512MB Ext การ์ดหน่วยความจำ |
Dimennsions | 4.5 ซม. x 5.0 ซม. x 1.0 ซม |
น้ำหนัก | 0.1kg |
รายละเอียดสินค้า
ใบสมัคร
การ์ด CompactFlash เป็นอุปกรณ์จัดเก็บข้อมูลสำหรับเทอร์มินัล 2711P PanelView Plus หรือ PanelView Plus CE การ์ดเลื่อนลงในสล็อต CompactFlash ของเทอร์มินัลหรือลงในสล็อต PCMCIA ของคอมพิวเตอร์ส่วนบุคคลโดยใช้อะแดปเตอร์ 2711P-RCH
ติดตั้งการ์ดหน่วยความจำ
หาช่องเสียบการ์ดที่ด้านข้างของเครื่อง
ใส่การ์ดในช่องเสียบการ์ดและดันจนกระทั่งการ์ดเข้าที่ดี
สำหรับเทอร์มินัล PanelView Plus 400 และ 600 ให้ใส่การ์ดที่มีโลโก้ AB หันเข้าหาหน้าจอ
สำหรับเทอร์มินัล 2711P PanelView Plus 700 - 1500 หรือเทอร์มินัล PanelView Plus CE ให้ใส่การ์ดโดยให้โลโก้หันหน้าออกจากจอแสดงผล
ทำตามขั้นตอนเหล่านี้เพื่อติดตั้งการ์ดหน่วยความจำในคอมพิวเตอร์ส่วนบุคคล:
Insert the card into the cat. ใส่การ์ดเข้าไปในแมว not. ไม่. 2711P-RCH, adapter with both ABlogos facing in the same direction. 2711P-RCH ตัวแปลงที่หันหน้าเข้าหา ABlogos ในทิศทางเดียวกัน
ใส่ชุดประกอบลงในสล็อต PCMCIA การ์ดจะปรากฏเป็นไดรฟ์ใหม่
ถอดการ์ดหน่วยความจำ
1.Press the Eject button above the memory card slot. 1. กดปุ่มนำแผ่นออกเหนือช่องเสียบการ์ดหน่วยความจำ When the button popsout, press it again to release the card.The PanelView Plus 400 and 600 terminals do not have an eject button.Simply secure edge of card with your fingers and pull card away from slot. เมื่อปุ่มปรากฏขึ้นให้กดอีกครั้งเพื่อปล่อยการ์ดแผงควบคุม PanelView Plus 400 และ 600 ไม่มีปุ่มนำออกขอบของการ์ดที่ปลอดภัยเพียงใช้นิ้วของคุณดึงการ์ดออกจากสล็อต
2. ถอดการ์ดหน่วยความจำออกจากช่องเสียบ
