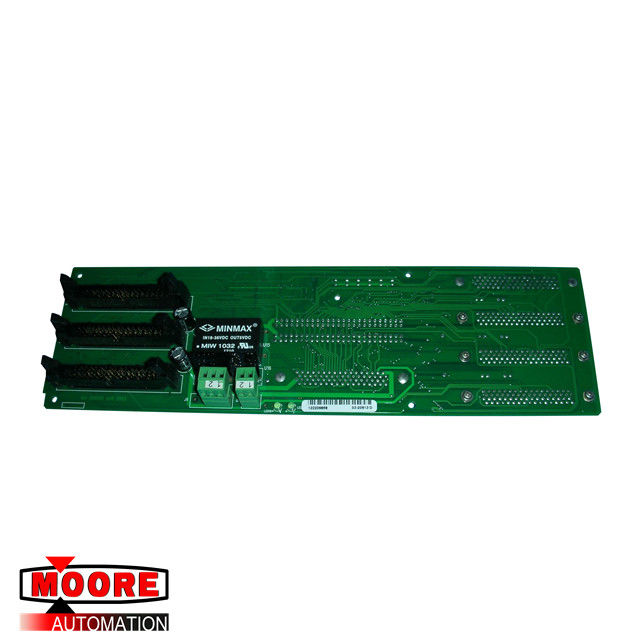

03-20913 / D 64-20913B ASM Board IN18-36VDC OUT5VDC
ยี่ห้อ / ผู้ผลิต | ASM / เนเธอร์แลนด์ |
ส่วนจำนวน |
03-20913 / D |
หมายเลขชิ้นส่วนอื่น |
64-20913B |
ลักษณะ | คณะกรรมการ ASM |
Dimennsions | 17.9 ซม. x 8.6 ซม. x 3.1 ซม |
น้ำหนัก | 0.23kg |
รายละเอียดสินค้า
If it is determined that either of the sensor elements is open or shorted to case, or that the sensor tube is plugged, it will be necessary to replace the sensor assembly. หากมีการพิจารณาว่าองค์ประกอบเซ็นเซอร์อย่างใดอย่างหนึ่งเปิดอยู่หรือสั้นลงในกรณีหรือว่าปลั๊กเซ็นเซอร์มีความจำเป็นต้องเปลี่ยนชุดเซ็นเซอร์ This can be done by unsoldering the sensor leads from the PC board and removing the two screws which attach the sensor assembly to the base. สิ่งนี้สามารถทำได้โดยการนำหัวเซ็นเซอร์ออกจากบอร์ด PC และถอดสกรูสองตัวที่ประกอบชุดเซ็นเซอร์เข้ากับฐาน The sensor assembly can then be removed and replaced. ชุดเซ็นเซอร์สามารถถอดและเปลี่ยนได้ CAUTION: Before replacing the sensor assembly, the sensor element resistance should be checked and should measure as follows : ข้อควรระวัง: ก่อนที่จะเปลี่ยนชุดเซ็นเซอร์ควรตรวจสอบความต้านทานองค์ประกอบของเซ็นเซอร์และควรวัดดังนี้:
Upstream Ru = 175 โอห์ม + 5 โอห์ม
เขียวถึงแดงดาวน์สตรีมถ = 175 โอห์ม + 5 โอห์ม
ตรวจสอบว่า Ru - Rd <+ -1 ohms
สีเหลืองถึงสีแดงแยก 100 mega ohms
(ทั้งหมดนำไปสู่หลอดเซ็นเซอร์)
Examine the sensor seals (replace if necessary with new ones) and make sure they are seated with the open side toward the bottom of the assembly; ตรวจสอบแมวน้ำเซ็นเซอร์ (แทนที่หากจำเป็นด้วยอันใหม่) และตรวจสอบให้แน่ใจว่าติดอยู่กับด้านที่เปิดไปทางด้านล่างของชุดประกอบ pressurize the base and check for leakage. ดันฐานและตรวจสอบการรั่วไหล Resolder the sensor leads to the circuit board. Resolder เซ็นเซอร์นำไปสู่แผงวงจร
