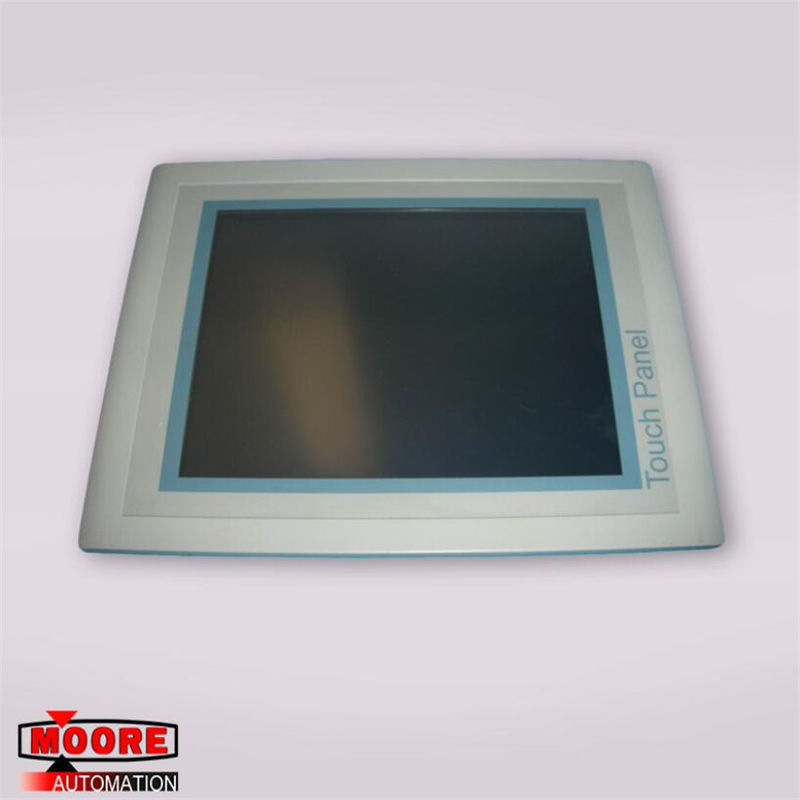

VIPA 62K-JEE0-CB จอสัมผัส 10.4 นิ้วสี TFT, MPI / PROFIBUS
ยี่ห้อ / ผู้ผลิต | VIPA / เยอรมนี |
ส่วนจำนวน |
62K-JEE0-CB |
หมายเลขชิ้นส่วนอื่น | 62K-JEE0-CB |
ลักษณะ | แตะที่แผงควบคุม |
Dimennsions | 30.4 ซม. x 23.3 ซม. x 7.1 ซม |
น้ำหนัก | 0.33kg |
รายละเอียดสินค้า
The VIPA Touch Panel allows you to visualize and alter operating states and recent process values of a connected PLC. VIPA Touch Panel ช่วยให้คุณเห็นภาพและแก้ไขสถานะการทำงานและค่ากระบวนการล่าสุดของ PLC ที่เชื่อมต่อ The Touch Panel is a compact and modular embedded PC based on Windows CE. Touch Panel เป็นพีซีแบบฝังตัวขนาดกะทัดรัดที่ติดตั้ง Windows CE Besides the extensive Windows CE functions the Touch Panel offers varied communication possibilities. นอกเหนือจากฟังก์ชั่น Windows CE ที่หลากหลาย Touch Panel ยังมีความเป็นไปได้ในการสื่อสารที่หลากหลาย Here the Touch Panel can simply be configured, controlled and remoted. ที่นี่ Touch Panel สามารถกำหนดค่าควบคุมและส่งใหม่ได้อย่างง่ายดาย
Windows CE 6.0 Prof.
62K-JEE0-CB: Movicon 11 CE Standard (4096 I / O ไบต์)
โปรเซสเซอร์ Xscale, 800MHz
หน่วยความจำในการทำงาน 128Mbyte
หน่วยความจำของผู้ใช้ 4GB
หน่วยความจำ 3800 ไบต์สำหรับข้อมูลผู้ใช้
CF-Card II และช่องเสียบการ์ด MMC / SD
RS232, RS422 / 485, MPI, PROFIBUS DP slave, อีเธอร์เน็ต, อินเตอร์เฟส USB-A และ USB-B
กล่องหล่อแบบอลูมิเนียมแข็งแรงทนทาน
ความละเอียดการแสดงผล 800 x 600/600 x 800 (สี 64k)
นาฬิกาสำรองแบตเตอรี่
หน้าจอสัมผัสแบบ Resistive
ติดตั้งง่ายผ่านก้านหมุนในตัว
ระดับการป้องกัน IP65 (ด้านหน้า)
The Touch Panel has got an integrated power supply. Touch Panel มีแหล่งจ่ายไฟในตัว The power supply has to be provided with DC 24V (20.4 ... 28.8V). ต้องมีแหล่งจ่ายไฟพร้อม DC 24V (20.4 ... 28.8V) For this you find an according DC 24V slot on the bottom side. สำหรับสิ่งนี้คุณจะพบช่องเสียบ DC 24V ที่ด้านล่าง
The power supply is protected against inverse polarity and overcurrent. แหล่งจ่ายไฟได้รับการคุ้มครองจากขั้วผกผันและกระแสเกิน The battery for the clock of the Touch Panel is an accumulator with a suitable charging circuit. แบตเตอรี่สำหรับนาฬิกาของ Touch Panel เป็นแอคคูมูเลเตอร์ที่มีวงจรการชาร์จที่เหมาะสม This accumulator is maintenance-free and does not need to be exchanged within the life span of the Touch Panel. แอคคูมูเลเตอร์นี้ไม่ต้องบำรุงรักษาและไม่จำเป็นต้องทำการแลกเปลี่ยนภายในช่วงอายุของ Touch Panel
