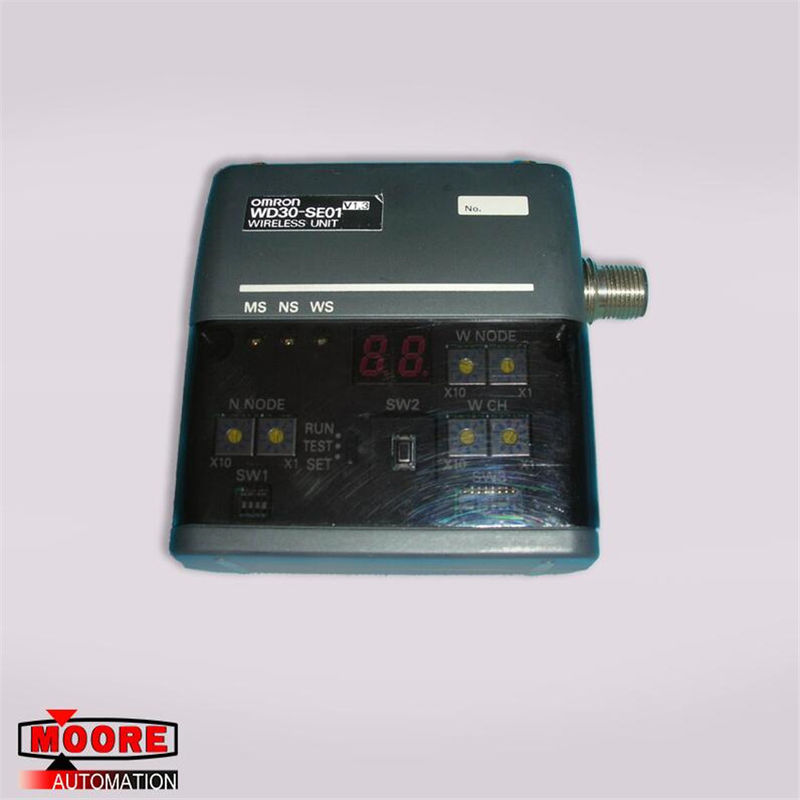

WD30-SE01 OMRON ตัวส่งสัญญาณไร้สายตัวเชื่อมต่อ RF 2.4GHz DSSS 100kbps
ยี่ห้อ / ผู้ผลิต | ออมรอน / ญี่ปุ่น |
ส่วนจำนวน |
WD30-SE01 |
หมายเลขชิ้นส่วนอื่น | WD30-SE01 |
ลักษณะ | ตัวรับส่งสัญญาณ RF แบบไร้สาย |
Dimennsions | (13.4 ซม. x 14.5 ซม. x 6.0 ซม.) |
น้ำหนัก | 0.21kg |
รายละเอียดสินค้า
ยูนิตไร้สาย DeviceNet ซึ่งประกอบด้วยสถานีหลักไร้สาย DeviceNet และสถานีทาสไร้สาย DeviceNet อนุญาตการสื่อสารไร้สายกับ DeviceNet สลาฟ
Basically, the wireless master station is connected to the DeviceNet network and acts as either a virtual DeviceNet slave or wireless network master station for the DeviceNet master unit. โดยทั่วไปสถานีหลักไร้สายจะเชื่อมต่อกับเครือข่าย DeviceNet และทำหน้าที่เสมือนทาสอุปกรณ์ DeviceNet เสมือนหรือสถานีต้นแบบเครือข่ายไร้สายสำหรับยูนิตหลักของ DeviceNet The wireless slave station acts as either a wireless network slave station or a virtual DeviceNet master with the DeviceNet slave unit. สถานีทาสไร้สายทำหน้าที่เป็นสถานีทาสเครือข่ายไร้สายหรืออุปกรณ์หลัก DeviceNet เสมือนกับยูนิตอุปกรณ์ DeviceNet
คุณสมบัติ:
DeviceNet slaves can be made wireless. ทาสอุปกรณ์ DeviceNet สามารถสร้างแบบไร้สายได้ Wireless DeviceNet slaves allows for a variety of field level applications. Wireless DeviceNet slaves อนุญาตให้มีแอปพลิเคชันระดับเขตข้อมูลหลากหลาย We recommend that this function be used for applications that are not required to operate in real time (such as displays for indicators and manufacturing instruction data transmissions). เราขอแนะนำให้ใช้ฟังก์ชันนี้สำหรับแอปพลิเคชันที่ไม่จำเป็นต้องใช้งานแบบเรียลไทม์ (เช่นแสดงสำหรับตัวบ่งชี้และการส่งข้อมูลคำสั่งการผลิต)
Errors can be monitored. สามารถตรวจสอบข้อผิดพลาดได้ DeviceNet slave error information (including errors in wireless slave stations) can be assigned to two or four status words and monitored from the PLC. ข้อมูลข้อผิดพลาดทาส DeviceNet (รวมถึงข้อผิดพลาดในสถานีทาสไร้สาย) สามารถกำหนดให้กับคำสถานะสองหรือสี่และตรวจสอบจาก PLC
Abundant number of wireless channels allows the construction of multiple systems in the same area. จำนวนช่องสัญญาณไร้สายมากมายช่วยให้สามารถสร้างระบบหลาย ๆ ระบบในพื้นที่เดียวกัน Since the wireless region is divided into 34 frequencies from 2,400 to 2,483.5MHz, you can select an unused frequency for building multiple systems. เนื่องจากภูมิภาคไร้สายแบ่งออกเป็น 34 ความถี่จาก 2,400 ถึง 2,483.5MHz คุณสามารถเลือกความถี่ที่ไม่ได้ใช้สำหรับการสร้างหลายระบบ Using a spectral spread method (DS: direct spread) as a modulation method achieves high-quality communications even in areas of excess noise. การใช้วิธีการกระจายสเปคตรัม (DS: direct spread) เป็นวิธีการมอดูเลตเพื่อให้ได้การสื่อสารที่มีคุณภาพสูงแม้ในพื้นที่ที่มีสัญญาณรบกวนมากเกินไป
Relay functions make possible an extension in communications distances. ฟังก์ชั่นรีเลย์ช่วยให้สามารถขยายระยะการสื่อสารได้ Although communications distances vary according to the installation environment, the goal indoors is 60m in line of sight. แม้ว่าระยะการสื่อสารจะแตกต่างกันไปตามสภาพแวดล้อมในการติดตั้ง แต่เป้าหมายในอาคารคือ 60m The relay functions allow an increase in the communications area (to a maximum of 3 stages). ฟังก์ชั่นรีเลย์อนุญาตให้เพิ่มพื้นที่การสื่อสาร (สูงสุด 3 ขั้น) DeviceNet slaves may also be connected to the relay station. ทาสอุปกรณ์ DeviceNet อาจเชื่อมต่อกับสถานีถ่ายทอด However, relay station system settings can only be performed from the configurator. อย่างไรก็ตามการตั้งค่าระบบสถานีถ่ายทอดสามารถทำได้จากตัวกำหนดค่าเท่านั้น
Diversity functions. ฟังก์ชั่นที่หลากหลาย Multi-pass phasing is improved with a diversity system (which requires 2 antennas). การวางขั้นตอนแบบหลายรอบได้รับการปรับปรุงด้วยระบบความหลากหลาย (ซึ่งต้องใช้ 2 เสาอากาศ) The effects of this function are observed when used in areas where variations in radio waves (such as reflections) occur. ผลกระทบของฟังก์ชั่นนี้จะสังเกตได้เมื่อใช้ในพื้นที่ที่มีการเปลี่ยนแปลงของคลื่นวิทยุ (เช่นการสะท้อน)
Maximum number of I/O per wireless master station increased. จำนวนสูงสุดของ I / O ต่อสถานีหลักไร้สายเพิ่มขึ้น Depending on the switch settings of the wireless master station, the maximum number of I/O per wireless master station can be increased to 100 words/100 words (IN/OUT). จำนวนสูงสุดของ I / O ต่อสถานีหลักไร้สายนั้นสามารถเพิ่มได้ถึง 100 คำ / 100 คำทั้งนี้ขึ้นอยู่กับการตั้งค่าสวิตช์ของสถานีหลักไร้สาย The maximum number of wireless slave stations that can be connected has increased to 64. จำนวนสถานีทาสไร้สายสูงสุดที่สามารถเชื่อมต่อได้เพิ่มขึ้นเป็น 64
