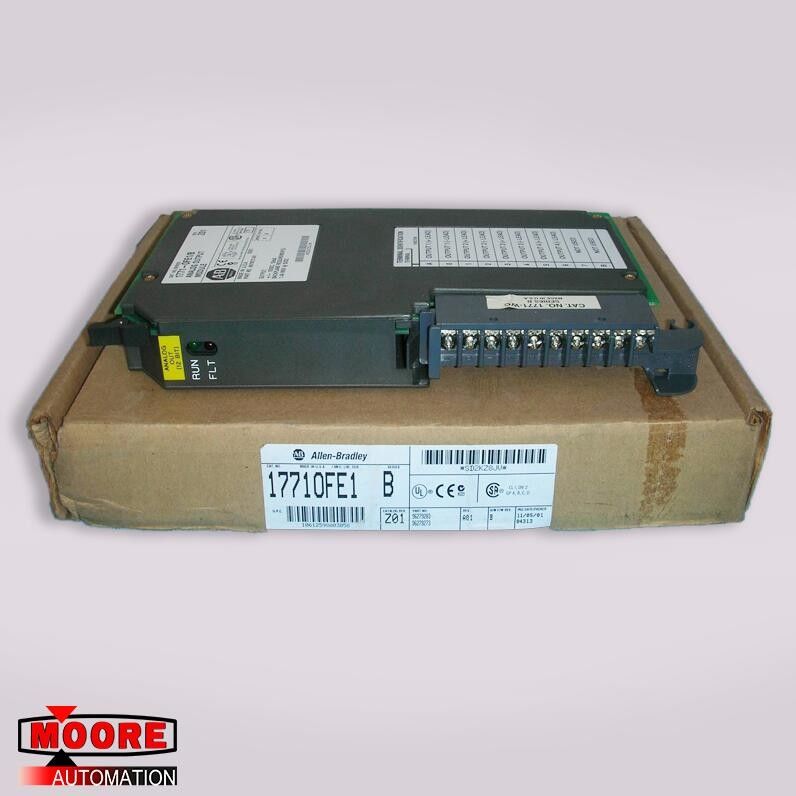

1771-0FE1 / B 1771-WC โมดูลเอาท์พุทแบบอะนาล็อก Allen Bradley
ข้อมูลจำเพาะผลิตภัณฑ์
ยี่ห้อ / ผู้ผลิต | Allen Bradley/สหรัฐอเมริกา |
ส่วนจำนวน |
1771-0FE1 / B |
หมายเลขชิ้นส่วนอื่น | 1771-WC |
ลักษณะ | โมดูลเอาท์พุทแบบอะนาล็อก |
Dimennsions | WHD5.1 ซม. x 15.2 ซม. x 25.4 ซม |
น้ำหนัก | 0.5 ก.ก. |
รายละเอียดสินค้า
The Analog Output Module (cat. no. 1771-OFE) is an intelligent block transfer module that converts binary or four-digit BCD values (supplied by your processor) to analog signals at its four module outputs. โมดูลอนาล็อกเอาท์พุท (หมายเลข 1771-OFE) เป็นโมดูลถ่ายโอนบล็อกอัจฉริยะที่แปลงค่า BCD สองหรือสี่หลัก The module accomplishes the data transfer with block transfer programming. โมดูลสำเร็จการถ่ายโอนข้อมูลด้วยการตั้งโปรแกรมบล็อกโอน
Block transfer write (BTW) programming moves up to 13 words of data from the processor to the module for digital to analog (D/A) conversion in one program scan. การเขียนโปรแกรม Block Transfer write (BTW) จะย้ายข้อมูลสูงสุด 13 คำจากตัวประมวลผลไปยังโมดูลสำหรับการแปลงแบบดิจิทัลเป็นอนาล็อก (D / A) ในการสแกนหนึ่งโปรแกรม This information is converted to analog signals and is sent to the appropriate output channels. ข้อมูลนี้ถูกแปลงเป็นสัญญาณอะนาล็อกและถูกส่งไปยังช่องสัญญาณออกที่เหมาะสม A block transfer read (BTR) moves five words of data from the module to the processor data table, if desired, for diagnostic purposes. การถ่ายโอนแบบบล็อก (BTR) จะย้ายข้อมูลห้าคำจากโมดูลไปยังตารางข้อมูลโปรเซสเซอร์หากต้องการเพื่อวัตถุประสงค์ในการวินิจฉัย The BTR is discussed in Chapter 7, “Diagnostics and Troubleshooting.” BTR ถูกกล่าวถึงในบทที่ 7“ การวินิจฉัยและการแก้ไขปัญหา”
The module has a scaling feature that converts data sent to the module in engineering units to the proper analog signals. โมดูลมีคุณสมบัติการปรับสเกลที่แปลงข้อมูลที่ส่งไปยังโมดูลในหน่วยวิศวกรรมเป็นสัญญาณอะนาล็อกที่เหมาะสม You may connect up to four analog output devices--such as valve positioners, motor speed controllers, signal converters or recorders--to the analog output module's four channels. คุณสามารถเชื่อมต่ออุปกรณ์เอาท์พุทแบบอะนาล็อกได้สูงสุดสี่ตัว - เช่นตัวกำหนดตำแหน่งวาล์ว, ตัวควบคุมความเร็วมอเตอร์, ตัวแปลงสัญญาณหรือตัวบันทึก - กับสี่ช่องสัญญาณของโมดูลอะนาล็อก All analog output device inputs should conform to the voltage or current ratings of each module output channel. อินพุตอุปกรณ์เอาต์พุตแบบอะนาล็อกทั้งหมดควรเป็นไปตามแรงดันไฟฟ้าหรือพิกัดกระแสของแต่ละช่องสัญญาณโมดูล
ในระบบควบคุมที่ตั้งโปรแกรมได้โมดูลเอาท์พุทแบบอะนาล็อก
ให้ฟังก์ชั่นดังต่อไปนี้:
เอาต์พุตแยกต่างกันสี่แบบแยกกัน
เลือกขนาดได้ถึงหน่วยวิศวกรรม
รูปแบบข้อมูลที่เลือกได้
ช่วงแรงดันไฟฟ้าที่เลือกได้ (1771-OFE1 เท่านั้น)
ไม่ต้องใช้พลังงานภายนอก - พลังงานถูกดึงมาจากแบ็คเพลน I / Ochassis ของ 1771
ต้องใช้สล็อต I / O เพียงช่องเดียว
