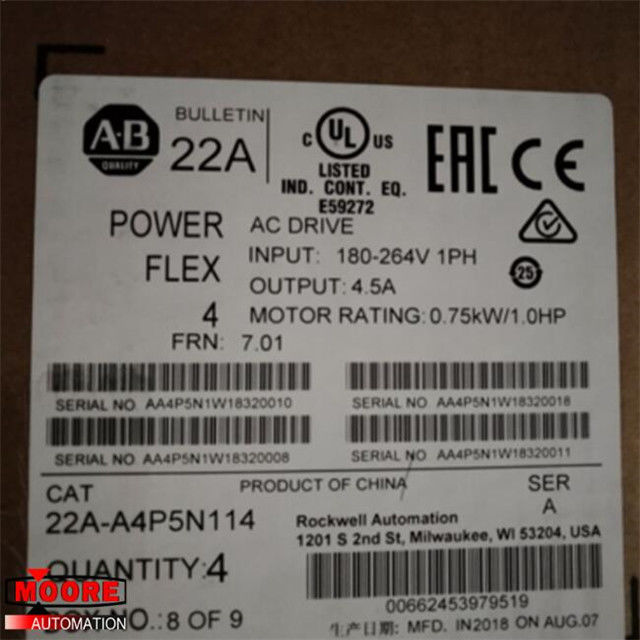

22A-A4P5N114 22AA4P5N114 อัลเลนแบรดลีย์เพาเวอร์เฟล็กซ์ 4 ไดรฟ์พร้อมไฟ AC 200-240V
⇒คลิกที่นี่เพื่อราคาดี 22A-A4P5N114
ยี่ห้อ / ผู้ผลิต | อัลเลนแบรดลีย์ / USA |
ส่วนจำนวน |
22A-A4P5N114 |
หมายเลขชิ้นส่วนอื่น | 22A-A4P5N114 |
ลักษณะ | เซอร์โวมอเตอร์ |
Dimennsions |
8.0 ซม. x 15.2 ซม. x 13.6 ซม |
น้ำหนัก | 1.4 กก |
รายละเอียดสินค้า
The AB 22A-A4P5N114 PowerFlex 4 series adjustable frequency AC drive is an economical solution for motor acceleration, speed, and power consumption control. อัลเลน - แบรดลีย์ 22A-A4P5N114 ซีรีย์ AC ความถี่ที่ปรับได้ PowerFlex 4 เป็นโซลูชันที่ประหยัดสำหรับการเร่งความเร็วมอเตอร์และการควบคุมการใช้พลังงาน This single-phase (200 to 240 Volts AC) drive delivers 4.5 Amps of current. ไดรฟ์เฟสเดียว (200 ถึง 240 โวลต์ AC) นี้ให้กระแส 4.5 แอมป์ Its power rating is 1 Horsepower (0.75 kilowatts). มีกำลังไฟ 1 แรงม้า (0.75 กิโลวัตต์) The 22A-A4P5N114 drive is a microprocessor-based drive that has standard features like the Volts per Hertz control, digital and analog inputs and outputs, and PC connection capability. ไดรฟ์ 22A-A4P5N114 เป็นไดรฟ์ที่ใช้ไมโครโปรเซสเซอร์ซึ่งมีคุณสมบัติมาตรฐานเช่นโวลต์ต่อการควบคุมเฮิร์ตซ์อินพุตและเอาต์พุตดิจิตอลและอนาล็อกและความสามารถในการเชื่อมต่อกับพีซี The drive can be programmed and monitored over a local HMI or software tools such as the DriveExplorer and DriveTools software. ไดรฟ์สามารถตั้งโปรแกรมและตรวจสอบผ่าน HMI ในพื้นที่หรือเครื่องมือซอฟต์แวร์เช่นซอฟต์แวร์ DriveExplorer และ DriveTools The LED screen can display 4 digits, and it also has 10 additional LED indicators. หน้าจอ LED สามารถแสดงตัวเลข 4 หลักและยังมีไฟแสดงสถานะ LED เพิ่มเติม 10 ตัว It shows monitoring and diagnostic information in the most reasonable way (with codes). มันแสดงข้อมูลการตรวจสอบและการวินิจฉัยในวิธีที่เหมาะสมที่สุด (ด้วยรหัส) The 22A-A4P5N114 drive delivers quiet motor operation, boosts the efficiency of the motor, and delivers smooth operation even at low speeds. ไดรฟ์ 22A-A4P5N114 ให้การทำงานของมอเตอร์ที่เงียบช่วยเพิ่มประสิทธิภาพของมอเตอร์และให้การทำงานที่ราบรื่นแม้ในความเร็วต่ำ The dimensions of the drive are 6.8 inches x 4.1 inches x 3.7 inches, so it can be easily fitted onto a DIN rail in really small electrical cabinets. ขนาดของไดรฟ์คือ 6.8 นิ้ว x 4.1 นิ้ว x 3.7 นิ้วจึงสามารถติดตั้งเข้ากับราง DIN ในตู้ไฟฟ้าขนาดเล็กได้อย่างง่ายดาย
The AB 22A-A4P5N114 drive supports Zero Stacking, which can minimize wasted space between the drives that are the same type. AB 22A-A4P5N114 ไดรฟ์รองรับ Zero Stacking ซึ่งสามารถลดพื้นที่ที่สิ้นเปลืองระหว่างไดรฟ์ที่เป็นประเภทเดียวกัน It is delivered in an IP 20 rated high-temperature-resistant plastic housing. มันถูกส่งมอบในตัวเรือนพลาสติกทนความร้อนสูงเกรด IP 20 The drive also has one RS-485 communication port that supports the standard protocols for this type of connection. ไดรฟ์ยังมีพอร์ตสื่อสาร RS-485 หนึ่งพอร์ตที่รองรับโปรโตคอลมาตรฐานสำหรับการเชื่อมต่อประเภทนี้ For protection purposes, this drive has integrated overvoltage, ground fault, and overload detection trips. เพื่อวัตถุประสงค์ในการป้องกันไดรฟ์นี้มีการรวมแรงดันไฟฟ้าเกิน, ความผิดปกติของพื้นดินและการตรวจจับการโอเวอร์โหลด This drive is mostly installed in standard industrial applications like fans, conveyors, and pumps. ไดรฟ์นี้ส่วนใหญ่จะติดตั้งในงานอุตสาหกรรมมาตรฐานเช่นพัดลมสายพานและปั๊ม The drive must be operated at temperatures of -10 to 50 degrees Celsius and 0 to 95% relative humidity. ไดรฟ์จะต้องดำเนินการที่อุณหภูมิ -10 ถึง 50 องศาเซลเซียสและความชื้นสัมพัทธ์ 0 ถึง 95% Its operating shock is 15 G peak for 11 milliseconds. แรงกระแทกในการทำงานอยู่ที่ 15 G สูงสุดเป็นเวลา 11 มิลลิวินาที
