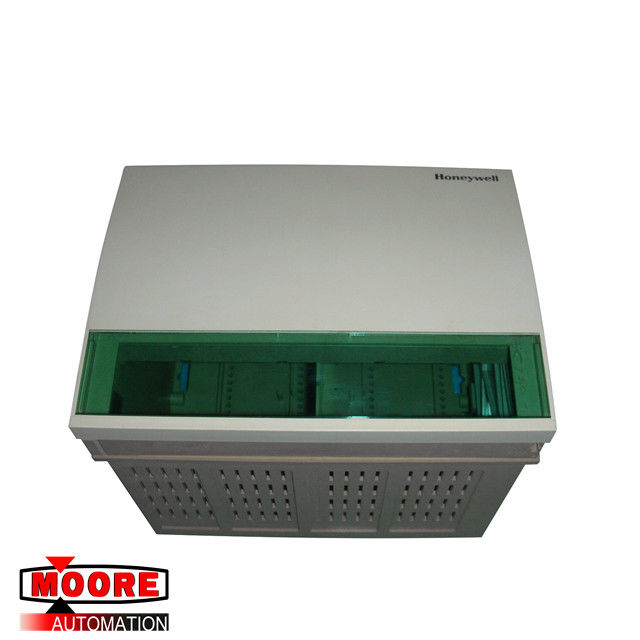

XH562H Honeywell EXCEL500 หมู่บ้าน Cover อินพุต / เอาท์พุตสากล
⇒คลิกที่นี่เพื่อดูราคาดี XH562H
ยี่ห้อ / ผู้ผลิต | Honeywell / USA |
ส่วนจำนวน |
XH562H |
หมายเลขชิ้นส่วนอื่น | XH562H |
ลักษณะ | ที่อยู่อาศัย Universal Input / Output Cover |
Dimennsions | 19.1 ซม. x 14.6 ซม. x 17.8 ซม |
น้ำหนัก | 1.0kg |
รายละเอียดสินค้า
The Excel 500/600 is a freely programmable control and monitoring system specifically designed for building management. Excel 500/600 เป็นระบบควบคุมและตรวจสอบที่ตั้งโปรแกรมได้อย่างอิสระออกแบบมาโดยเฉพาะสำหรับการจัดการอาคาร Using the latest Direct Digital Control (DDC) technology, the modular design of the Excel 500/600 is particularly well suited for use in medium-sized buildings such as schools, hotels, offices, shopping centers, and hospitals. ด้วยการใช้เทคโนโลยี Direct Digital Control (DDC) ล่าสุดการออกแบบแบบแยกส่วนของ Excel 500/600 นั้นเหมาะสมอย่างยิ่งสำหรับใช้ในอาคารขนาดกลางเช่นโรงเรียนโรงแรมสำนักงานห้างสรรพสินค้าและโรงพยาบาล
In addition to control applications for heating, ventilation, and air conditioning (HVAC), the Excel 500/600 also performs a wide range of energy management functions. นอกเหนือจากการควบคุมการใช้งานสำหรับการทำความร้อนการระบายอากาศและการปรับอากาศ (HVAC) แล้ว Excel 500/600 ยังมีฟังก์ชั่นการจัดการพลังงานที่หลากหลายอีกด้วย including optimum start/stop, night purge, and maximum load demand. รวมถึงการเริ่ม / หยุดที่เหมาะสมการกำจัดกลางคืนและความต้องการโหลดสูงสุด Up to four Building Supervisors can be สามารถควบคุมอาคารได้สูงสุดสี่คน
เชื่อมต่อผ่านบัสระบบ
The Excel 500 controller has a LONWORKS® bus interface, allowing interoperability with a wide range of Honeywell and third-party controllers and devices. ตัวควบคุม Excel 500 มีอินเตอร์เฟสบัสLONWORKS®ช่วยให้สามารถทำงานร่วมกับอุปกรณ์ควบคุมและอุปกรณ์อื่น ๆ ของ Honeywell และบุคคลที่สามได้หลากหลาย Up to 512 LONWORKS network variables can be mapped to data points. ตัวแปรเครือข่าย LONWORKS มากถึง 512 สามารถแมปกับจุดข้อมูลได้
A modem or ISDN terminal adapter can be connected for communication via the public telephone network. โมเด็มหรืออะแดปเตอร์เทอร์มินัล ISDN สามารถเชื่อมต่อเพื่อการสื่อสารผ่านเครือข่ายโทรศัพท์สาธารณะ Connection to a Siemens M20 Terminal allows wireless communication via the 900 MHz GSM network. การเชื่อมต่อกับ Siemens M20 Terminal ช่วยให้การสื่อสารไร้สายผ่านเครือข่าย GSM 900 MHz Excel 600 requires an XDM506 for stand-alone modem communication. Excel 600 ต้องการ XDM506 สำหรับการสื่อสารด้วยโมเด็มแบบสแตนด์อโลน
The modular design enables the system to be expanded to meet growing needs. การออกแบบแบบแยกส่วนช่วยให้ระบบสามารถขยายเพื่อตอบสนองความต้องการที่เพิ่มขึ้น The data point user addresses and plain language descriptors are stored in the controller and are therefore available for viewing locally at an external interface without the need of a central PC. ที่อยู่ผู้ใช้ของจุดข้อมูลและตัวบอกภาษาแบบธรรมดาจะถูกเก็บไว้ในคอนโทรลเลอร์ดังนั้นจึงสามารถดูได้แบบโลคัลที่อินเตอร์เฟสภายนอกโดยไม่จำเป็นต้องใช้พีซีกลาง
ข้อมูลจำเพาะ
ไฟฟ้า
แรงดันไฟฟ้า: 24 Vac, ± 20%
Power consumption: max. การใช้พลังงาน: สูงสุด 40 VA (max. 30 W) 40 VA (สูงสุด 30 W)
Application security on power failure: Complete backup of total system for 15 min., UPS. ความปลอดภัยของแอพพลิเคชั่นเมื่อไฟฟ้าดับ: สำรองข้อมูลทั้งหมดของระบบเป็นเวลา 15 นาที, UPS Optional XAPU 24-2F. ตัวเลือก XAPU 24-2F
การป้องกันแรงดันไฟฟ้าเกิน: อินพุตและเอาต์พุตทั้งหมดได้รับการคุ้มครองจากแรงดันไฟเกิน 24 Vac และ 40 Vdc รวมทั้งการลัดวงจร
สิ่งแวดล้อม
Ambient temperature: Operation: 32 to 122°F (0 to 50°C); อุณหภูมิ: การทำงาน: 32 ถึง 122 ° F (0 ถึง 50 ° C); Storage: -4 to 158°F (-20 to 70°C) การเก็บรักษา: -4 ถึง 158 ° F (-20 ถึง 70 ° C)
ความชื้นสัมพัทธ์ (การใช้งานและการเก็บรักษา): 5 ถึง 93% rh ไม่มีไอน้ำ
วัสดุตัวเรือน: พลาสติก, สารหน่วงไฟ
